MathJax macro redefinition allows overriding built-in operators

Introduction

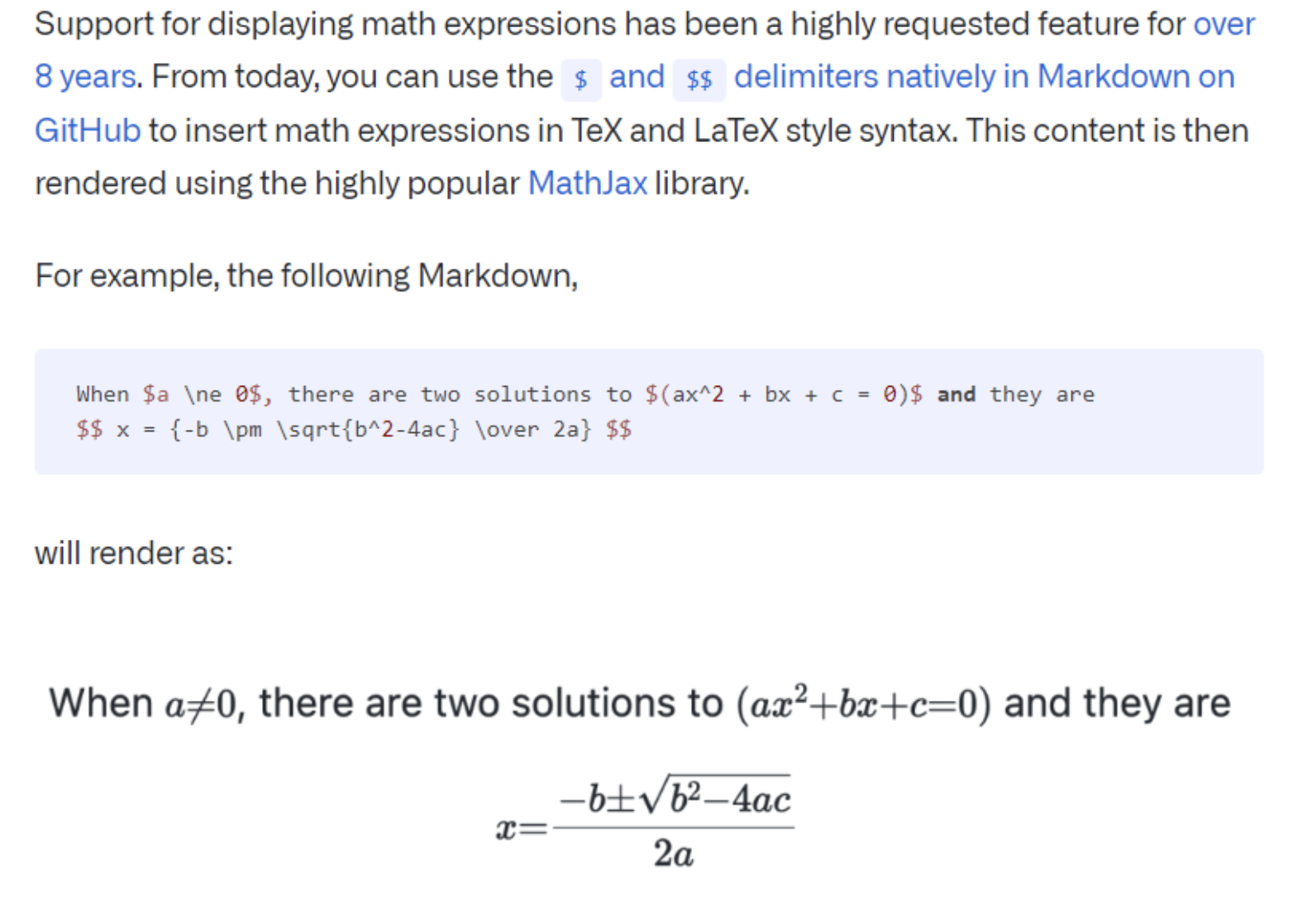

GitHub extended Markdown functionality through the MathJax library (see blog post here). GitHub gave users the ability to render mathematical equations in GitHub README files, Wiki pages, comments, etc. This is a fairly harmless feature until we analyze the library’s native macros in the context of data rendered across the GitHub repo and Issues data plane.

The Problem: Greetings ‘TeX Macros’

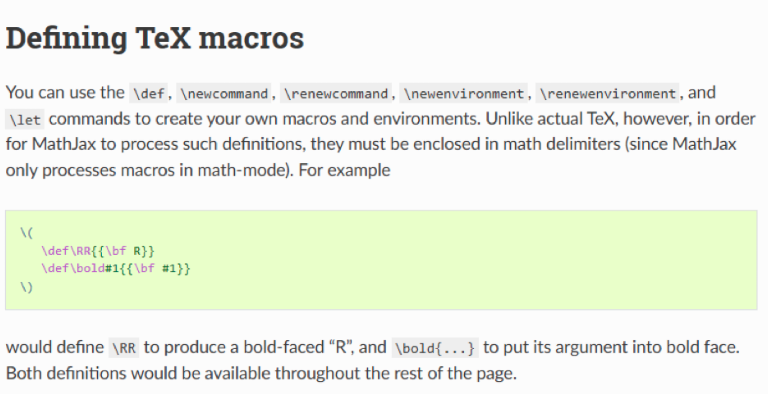

TeX is an input processor that converts mathematical notation into MathJax’s internal format, MathML (i.e., TeX -> MathML converter). Macros such as \def, \newcommand, and \newenvironment can be used to create your own macros and environments. Specifically, MathJax’s newcommand package stores every \def, \newcommand, \let macro in a dedicated, initially-empty CommandMap named new-Command.

The Theory

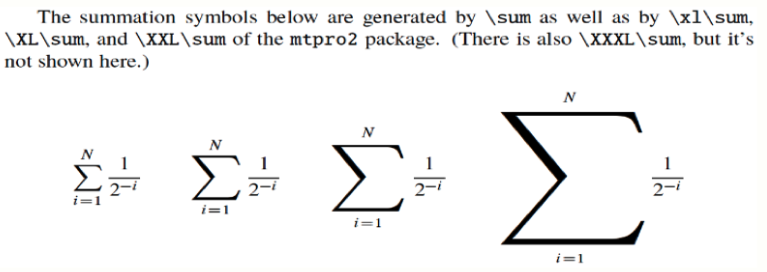

Per the above, defining \RR as a bold-faced “R” is intended. However, can native symbols/operators like ‘Σ’ (sum) or sqrt in MathJax be re-defined (i.e., overwritten or shadowed) to appear as something else (malicious text/code) in a public repo’s README.md file?

Testing the Theory via GitHub Issues

When setting the following payload in a GitHub Issue for a public GitHub repo on github.com, it was possible to overwrite the native ‘Σ’ Sigma (sum) mathematical symbol/operator to appear as a bold-faced “B” by re-defining its rendering, successfully overwriting the content in the repo’s README.md file. This impacted github.com, gist.github.com, and GitHub mobile apps.

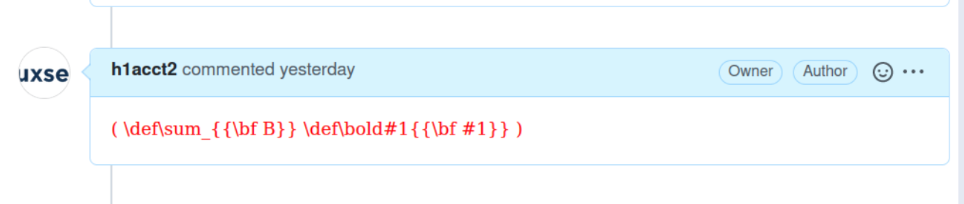

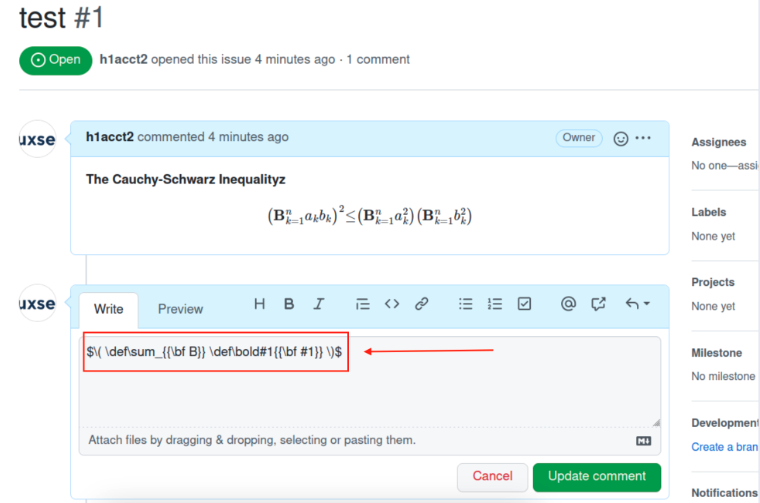

Github Issue with Injected Payload

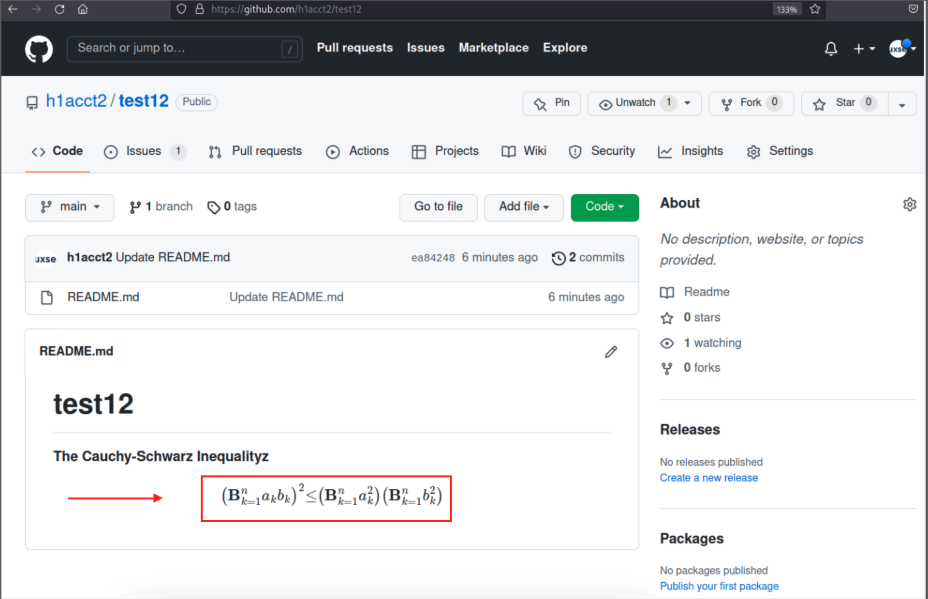

Injection overwrites content in the victim’s repo

Technical Analysis: Why did this happen?

MathJax’s newcommand package stores every \def, \newcommand, \let definition in a dedicated, initially-empty CommandMap named new-Command. That map is registered into the parser’s macro handler ahead of the base maps, and the write path performs no check against base, so a user \sum is inserted alongside (not over) the native one. Since new-Command is looked up first (higher priority), it returns the user entry and never reaches the base operator (i.e., the native ∑ is occluded, not deleted).

The registration, where the map is created empty and inserted with priority -1:

// NewcommandConfiguration.ts  (init)
new sm.CommandMap(NewcommandUtil.NEW_COMMAND, {}, {}); // 'new-Command', empty

config.append(Configuration.local({
  handler: { macro: [NewcommandUtil.NEW_DELIMITER,
                     NewcommandUtil.NEW_COMMAND] }, // added to the macro handler
  priority: -1                                      // ← positions it ahead of base
}));

Init creates new sm.CommandMap(NewcommandUtil.NEW_COMMAND, {}, {}) and appends a local configuration whose macro handler list contains NEW_COMMAND, at priority: -1.

The write path, which just adds to that map with no base lookup:

// NewcommandUtil.ts
export function addMacro(parser, cs, func, attr, symbol = '') {
  const handler = parser.configuration.handlers.retrieve(NEW_COMMAND); // 'new-Command'
  handler.add(cs, new Macro(symbol ? symbol : cs, func, attr));        // no existence check
}

[...]

export const NEW_COMMAND = 'new-Command';

NEW_COMMAND is the constant 'new-Command', and addMacro retrieves that map and calls handler.add(cs, new Macro(...)).

TeX input jax ── parser.configuration.handlers
resolve  \sum  ──▶  "macro" handler = ordered list of maps, 1st match wins
  ┌───────────────────────────────────────────────────────────────────┐
  │ new-Command  (CommandMap) registered via local config, priority -1│
  │     { sum → Macro(→ {\bf B}) }              ── HIT: return here   │
  ├───────────────────────────────────────────────────────────────────┤
  │ base maps    ( sum → mo(∑) )   later priority (default; value n/v)│
  │                                             ── never reached      │
  └───────────────────────────────────────────────────────────────────┘

  write path (define time):
    \def ─▶ addMacro('sum', …)
    handlers.retrieve('new-Command').add('sum', new Macro(…))
    // writes to new-Command only; base map untouched → shadow/override

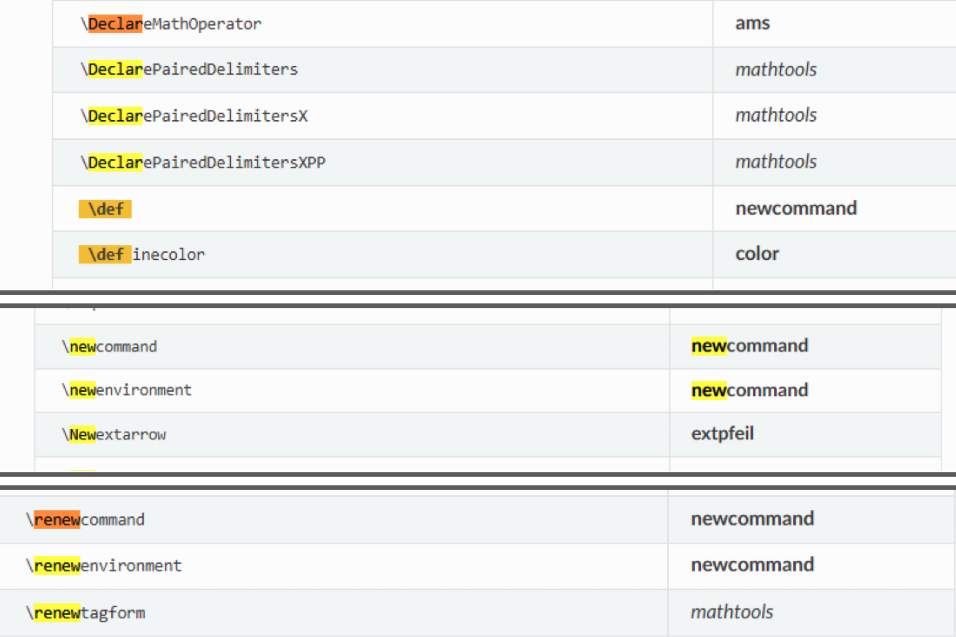

Additional variants

All macros below could be used to win priority mapping to override native operators in any public repo, with varying levels of impact: \def and \newcommand being the highest impact (i.e., overwriting content) versus \definecolor being the lowest impact (i.e., re-defining text color).

Mitigation

During the re-test, it was found GitHub disallowed use of the newcommand package, preventing usage of the \def macro, among others, in this case. Refusing the definition at define-time was a robust solution for handling untrusted input:

window.MathJax = { tex: { packages: { '[-]': ['newcommand'] } } };

Disclosure timeline

May 20, 2022: Reported to GitHub
May 20, 2022: GitHub fixed the issue
May to August, 2022: Various payouts throughout this time for additional variants reported
